Automated Creation of Flowcharts Representing Existing Code

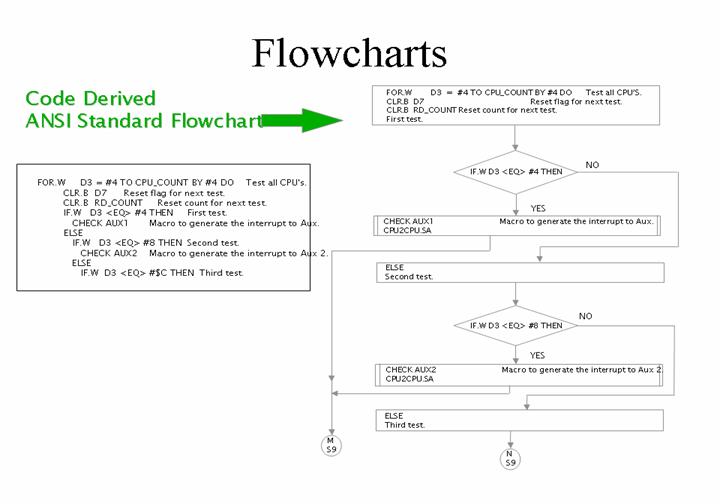

Automated Flowchart Generation

Software Flowcharting is accomplished from analysis of static code, and enhanced by information provided by engineers in the engineering environment.

Benefits include but not limited to the following;



· Derived from the code

· Show internal functioning of each module

· Show the sequence of operations

· Used to verify design is followed

· Useful in maintenance programming for module level debugging
